DVG-4090:   SDI / Composite Test Pattern Generator with Crash Switching.

FEATURES:

      SDI or Composite PAL/NTSC operation.
      Choice of 16 Test Patterns on loss of video input.
      Choice of 8 banners overlaid or keyed onto SDI input or Test Pattern output.

Brochure

User Manual

Software

GENERAL:

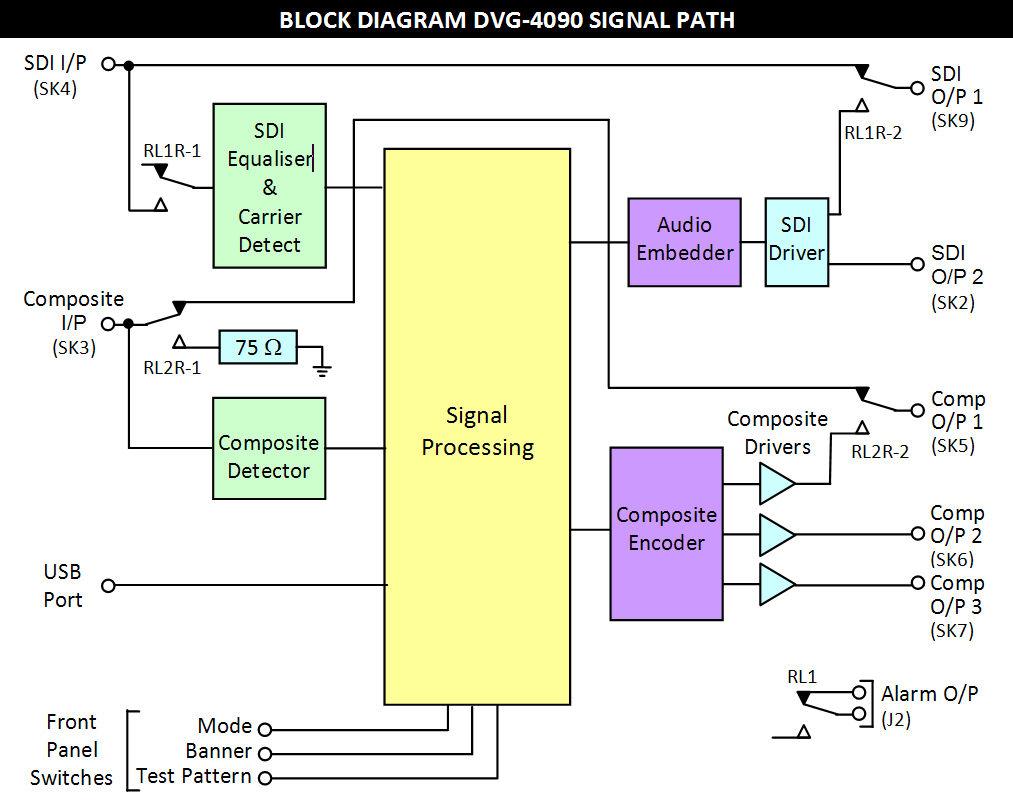

The DVG-4090 acts as an analogue / digital video crash switcher and test pattern generator. On loss of video input, output is automatically switched to a choice of 16 test patterns.

8 custom built banners containing text or pictures, such as station logos, and 2 full screen pictures can be downloaded by supplied software. Single banners can be overlaid or keyed onto the test pattern output in the lower section of the video picture. In the case of an SDI input, these banners can also be overlaid onto the existing stream.

A countdown banner and audio test signal insertion is also available for link identification purposes.

The DVG-4090 is designed to fit IRT's standard Eurocard frames as well as IRT's 4000 series frame for use with IRT's SNMP system and may be used alongside any other of IRT's analogue or digital Eurocards.


TECHNICAL SPECIFICATIONS:

Input - Digital:
Connector
75Ω BNC.
Format
270 Mb/s SDI (SMPTE 259M), 625 or 525 line (link selectable).
Equlisation
Automatic, better than 200 metres at 270 Mb/s for Belden 8281 or equivalent cable.

Input - Analogue:
Connector
75Ω BNC.
Format
PAL or NTSC (link selectable).

Outputs - Digital:
Number
2 x SDI (one with relay bypass when used with SDI input), 625 or 525 line (link selectable);
1 x SDI when used with analogue input link setting.
Connectors
75Ω BNC.
Format
Re-clocked 270 Mb/s SDI (SMPTE 259M).
Signal Level
800 mV ±10%.

Outputs - Analogue:
Number
3 x Composite (one with relay bypass when used with analogue composite input), PAL or NTSC (link selectable).
Connectors
75Ω BNC.

Power Requirements:
Voltage
28 Vac CT (14-0-14) or ±16 Vdc.
Power Consumption
< 4 VA.

Other:
Temperature Range
0 - 50°C ambient.
Mechanical
Suitable for mounting in IRT 19" rack chassis with input output and power connections on the rear panel.

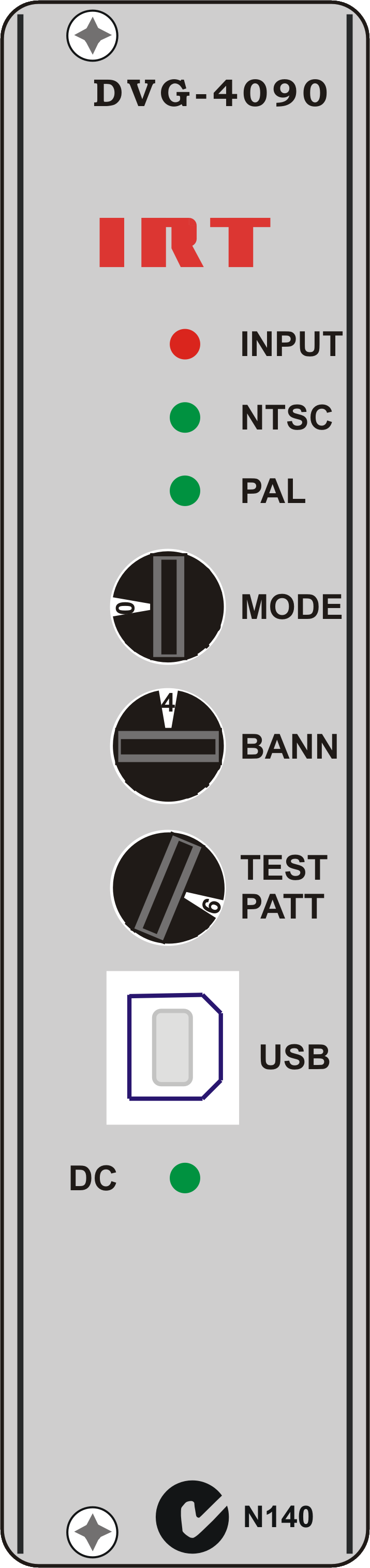

Finish:             Front panel
Grey background, black lettering & red IRT logo.

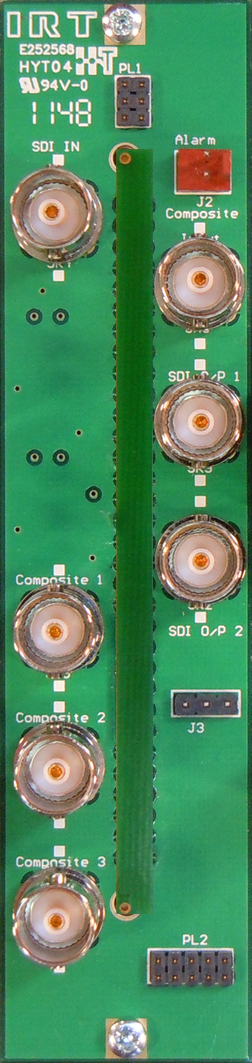

                       Rear Panel
Detachable silk-screened PCB with direct mount connectors to Eurocard and external signals.
Dimensions
6 HP x 3 U x 220 mm IRT Eurocard.




Due to our policy of continuing development, these specifications are subject to change without notice.
