No Longer Available - For Reference Purposes Only


MDC-4570:   ASI to ASI Network Interface Adapter.

FEATURES:

      ASI to ASI conversion.
      188 to 204 & 204 to 188 byte conversion, where appropriate.
      Reed Solomon encoding & decoding.
      Interleaving or de-interleaving.
      Scrambling or de-scrambling.
      Packet length indication.
      Supplement to test equipment.
      SNMP capable.

Brochure

User Manual

GENERAL:

The MDC-4570 is an ASI to ASI data transcoder for converting between the commonly used MPEG2 Transport Stream formats in the broadcast industry for video distribution.

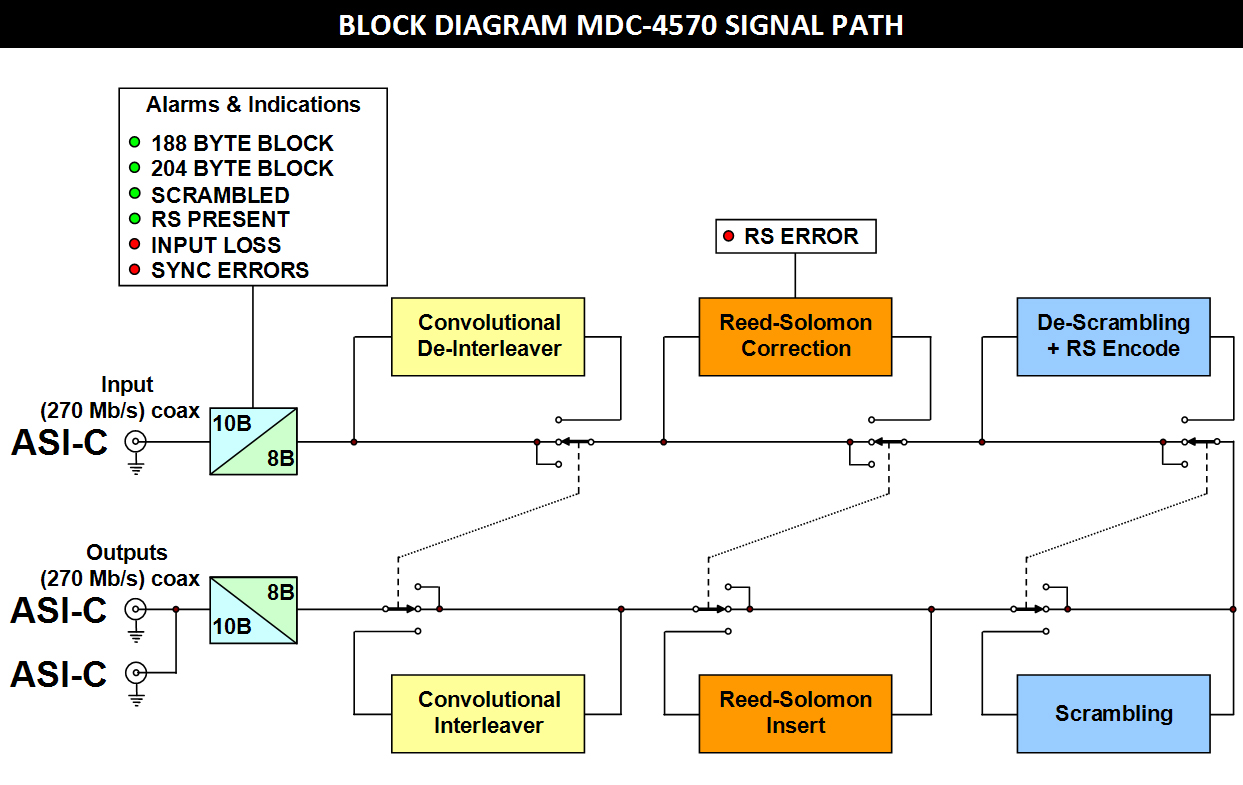

The MDC-4570 can operate at ASI rates from 2 Mb/s to the full 213 Mb/s rate. When set up for encoding, it can perform 188 to 204 byte conversion, scrambling, RS encoding and interleaving. When set up for decoding, it can perform de interleaving, RS correction, descrambling and 204 to 188 byte conversion. All functionality is switch selectable.

The MDC-4570 finds particular use in protecting ASI streams when interfacing through various types of links, such as microwaves, satellite, or Telco G.703 links.

SNMP (Simple Network Management Protocol) is available for monitoring of switch settings and signal parameters when used in an IRT frame fitted with SNMP capability.

The MDC-4570 is designed to fit IRT's standard Eurocard frames and may be used alongside any other of IRT's analogue or digital Eurocards.


TECHNICAL SPECIFICATIONS:

Input:
Type
1 x ASI, 75 Ω BNC connector.
ASI Rate
2 Mb/s to 213 Mb/s.

Outputs:
Type
 2 x ASI-C 75 Ω, 800 mVp-p, BNC connector.

Alarms:
Major
 Relay goes open circuit on loss of Sync, or power loss.
Minor
Relay goes open circuit when an uncorrectable error occurs,
(or a correctable error if switch SW4-5 is ON), or power loss.

Power Requirements:
Voltage
28 Vac CT (14-0-14) or ±16 Vdc.
Power consumption
2.5VA.

Other:
Temperature range
0 - 50°C ambient.
Mechanical
Suitable for mounting in IRT 19" rack chassis with input, output and power connections on the rear panel.

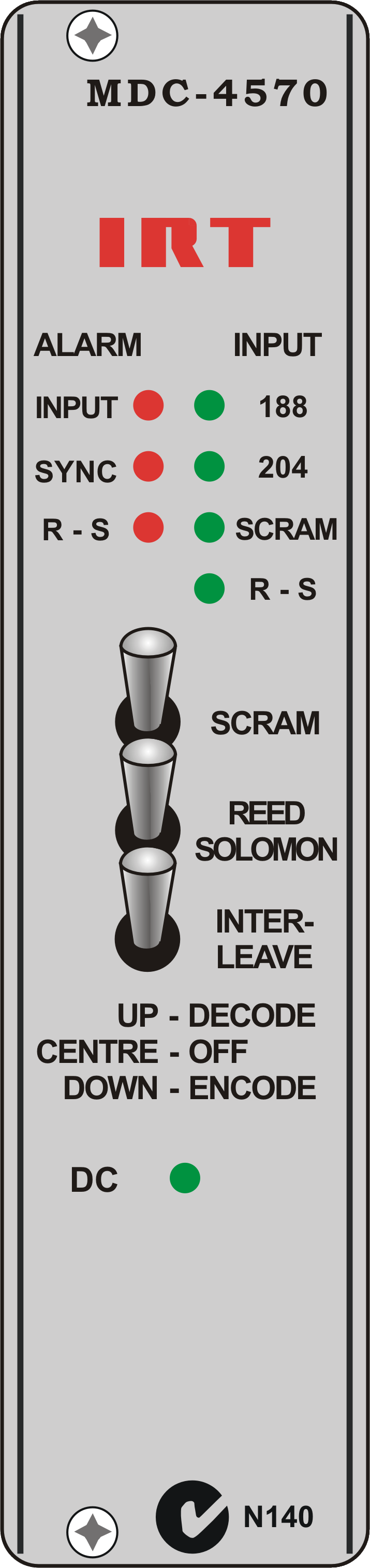

Finish:             Front panel
Grey background, black lettering & red IRT logo.

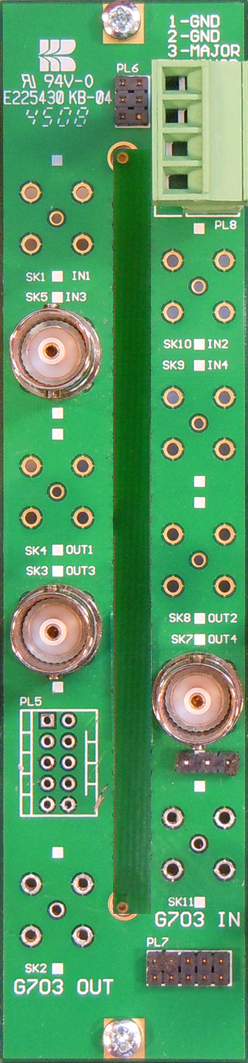

                       Rear assembly
Detachable silk-screened PCB with direct mount connectors to Eurocard and external signals.
Dimensions
6 HP x 3 U x 220 mm IRT Eurocard.







Due to our policy of continuing development, these specifications are subject to change without notice.
